Addin: Measure surface angle

Tompanhuhu ✭✭
edited January 17 in RobotApps


Select 2 surfaces and get the angle between them.

How to install:

Download rspak file, open Add-ins tab in robotstudio. Click Install and select package.

Open Add-ins tab in robotstudio.

Right-click Doubleclick to center in the left panel.

Select load add-in.

If you want add-in to start automatically when robotstudio starts, select Autoload add-in.

How to use:

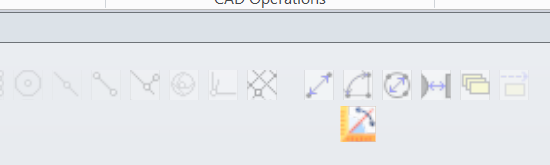

To start measuring go to Modeling ribbon, click Measure Surface angle button.


Click button in 3D window.

Current selector will change to surface.

Select 2 surfaces.

Result is printed in 3D view, and selector is restored to previous state.

Latest avalible version:

How to ask for support / feedback:

Write a post in this thread.
